TF Boxbeam Roll Forming Machine
  TF BOXBEAM ROLL FORMING MACHINE produce box beam section, it is widely used in the racking system(pallet live racking、cantilever racking、modular shelving、live racking、the racking systems、mobile racking system).

Share with:

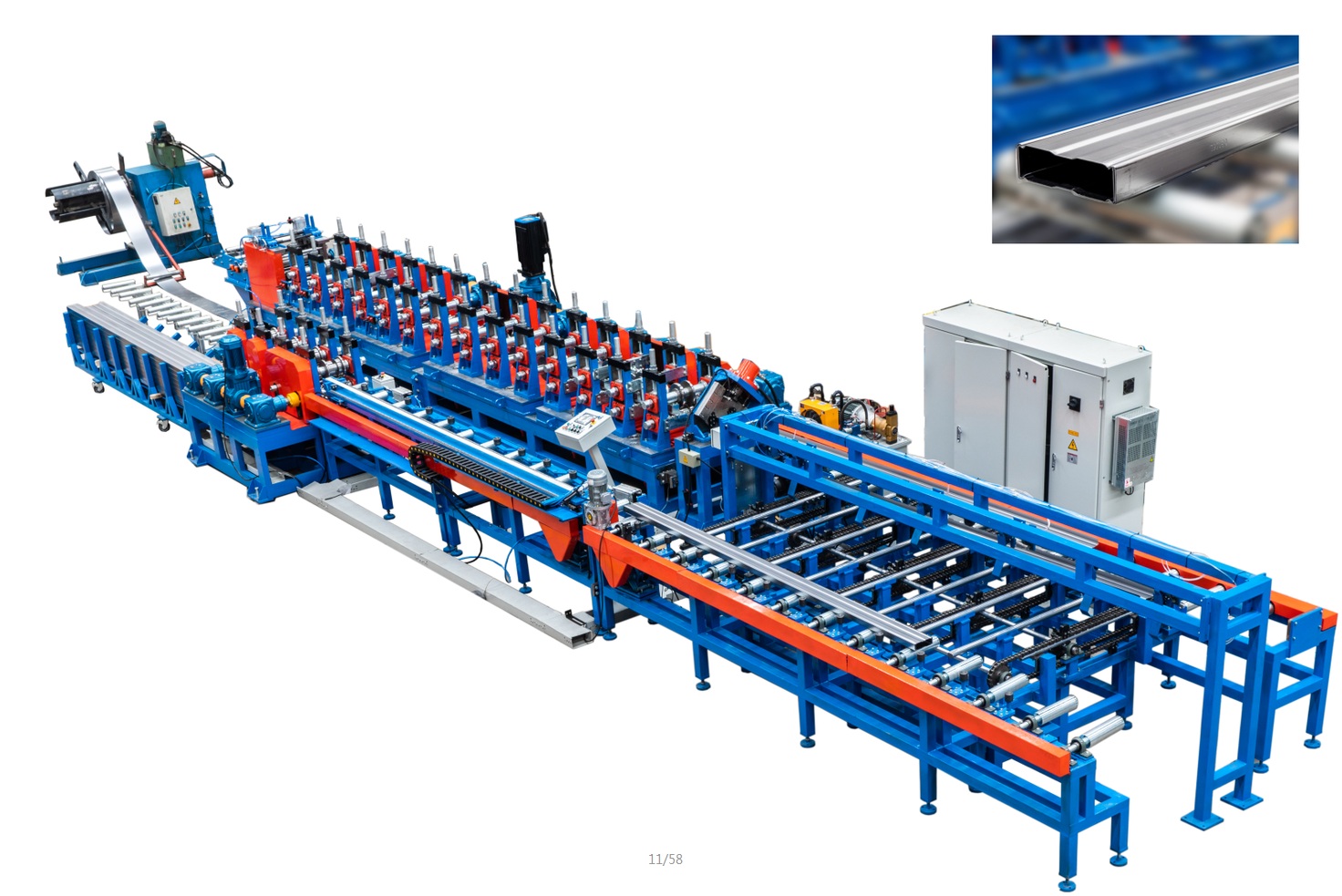

boxbeam roll forming line

boxbeam roll forming line


TF BOXBEAM ROLL FORMING MACHINE produce box beam section.The box beam section is safely carried on the front face of the upright where it belongs without ever touching or loading the side of the upright. to match different loading requirment. The roll forming machine can even shape the ribs on the profile discontinuously.

boxbeam roll forming line
Serial number Item Unit Parameters Remark
1 Suitable material Type   Q300 cold-rolled steel plate、galvanized plate、color-paint plate 、 stainless steel plate
strength MPa
Thickness mm 1.2mm~2.0mm
Coil internal diameter mm 508mm
Coil weight T 5
2 Specification mm 280--680
3 Line speed pcs/h 156
4 Roller material   Cr12, quenching treatment, HRC58-62
5 Roller driven type   External chain transmission
6 Operating system   Windows2000
7 Total motor power Kw 35
8 Electric control system   PLC automatic control system
9 Dimension(L*W) m 22X3

TF BOXBEAM ROLL FORMING LINE CUTTER  Boxbeam roll forming line

boxbeam roll forming line  boxbeam roll forming line

Boxbeam roll forming line
boxbeam section boxbeam section

Boxbeam roll forming line
 boxbeam section  boxbeam section
Boxbeam Sections
boxbeam section
